KFORTS Burglar-Resistant Systems RC3, P5A
Medium level in accordance with EN1627-1630 and EN356.
According to EN1627, the burglar attempts to gain entry using a crowbar, an additional screwdriver and hand tools such as a small hammer, pin punches and a mechanical drilling tool. With the use of the crowbar, the burglar has the opportunity to apply increased force. With the drilling tool, the burglar is able to attack vulnerable locking devices. The burglar typically attempts to take advantage of opportunities, has some knowledge of the likely level of resistance, and is concerned with both time and noise. No specific knowledge of the likely rewards is anticipated, and the level of risk the burglar is willing to take is medium.
Therefore, RC3 systems will resist this kind of burglar to protect people and essential assets.
Specifications
Specifications
| Burglar resistance class |
RC3, P5B |
| Glass thickness |
31-46mm |
| Profile thickness |
5mm |
| Fixed panel |
|
| Profile width | 75mm-90mm |
| Window | |
| Profile width | 78mm-84mm |
| Door | |
| Profile width | 121mm-126mm |

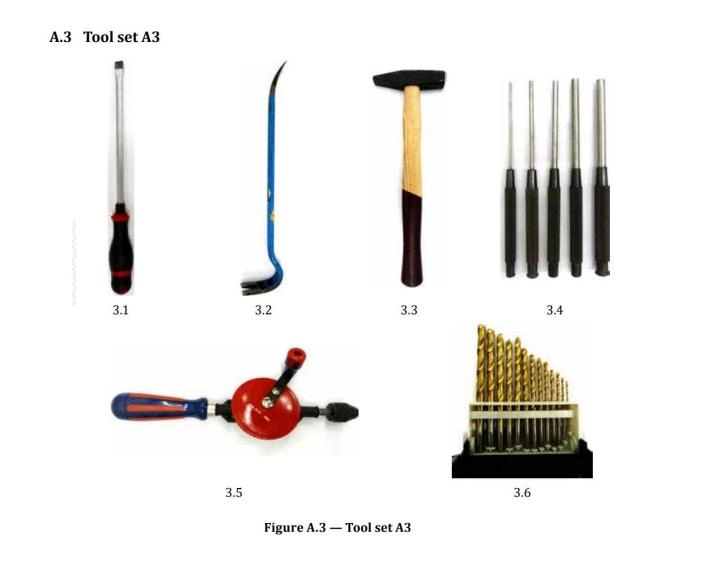

Table 4 - Tool set A3
|
Quantity |
Tool set A2 plus the following |
Tool No. |
|
1 |
Screwdriver; flat blade, length (365 ± 25) mm, blade width (16 ± 2.2) mm | 3.1 |
|
1 |
Crowbarowbar; length (700±20) mm |
3.2 |
|
1 |
Locksmith's hammer; head weight (200 ± 20) g, length (300 ± 20) mm |
3.3 |
|
1 |
Set of pin punches; diameters between 3 mm and 10 mm |
3.4 |
|
1 |
Hand drill; maximum length 355 mm |
3.5 |
|
1 |
Set of drill-bits; HSS or HS/C0 parallel shank twist drills (jobber), Ø 1.0 mm to Ø 6.0 mm in steps of 0.5 mm, Only one drill bit of each diameter may be used |
3.6 |
Window System
Section Examples
Swing Door and Curtain Wall System
Section Examples
Sliding Door System
Section Examples
More of Our High Quality Burglar Resistance Systems
KFORTS provides glass door and window security systems and protection against burglar, violent intrusion, bullets, explosions, and fire.
Contact Us for Your Custom Burglarproof & Forced Entry Solution
Trust KFORTS to provide you with the highest level of protection.
Contact us today to discuss your specific security needs and how our burglarproof and forced entry-resistant windows and doors can help safeguard your property.
Rest assured that your privacy is important to us, and all information provided will be handled with the utmost confidentiality.
