KFORTS Burglar-Resistant Systems RC5, P7B
Higher level in accordance with EN1627-1630 and EN356.
According to EN1627, the experienced burglar uses, in addition, electric tools, e.g. drills, jigsaws, sabre saws, and an angle grinder with a disc of max. 125 mm diameter. The use of the angle grinder further expands the range of attack methods likely to be successful. The burglar anticipates a reasonable reward, is resolute in his efforts to gain entry, and is well organized. He also has little concern for the level of noise he generates and is prepared to take a high level of risk.
Therefore, RC5 systems will resist this kind of burglar to protect people and essential assets.
Specifications
Specifications
| Burglar resistance class |
RC5, P7B |
| Glass thickness |
31mm-46mm |
| Profile thickness |
5mm |
| Fixed panel |
|
| Profile width | 75mm-90mm |
| Window | |
| Profile width | 78mm-84mm |
| Door | |
| Profile width | 121mm-126mm |

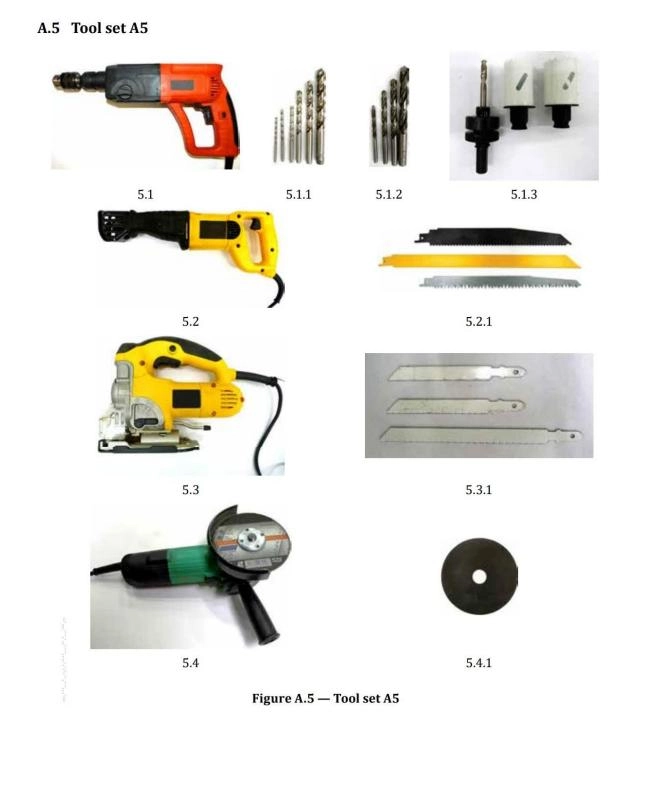

Table 6 - Tool set A5
|
Quantity |
Tool set A4 plus the following |
Tool No. |
|
1 |
Electric drill: nominal 650 W ± 10 %, with percussion action | 5.1 |
|
1 |
Set of drill bits: HSS or HS/CO parallel shank twist drills (jobber), Ø 1.0 mm to Ø 13.0 mm in steps of 0.5 mm. The maximum number of drill bits is not restricted |
5.1.1 |
|
1 |
Set of drill bits: carbide tips (masonry or metal cutting), parallel shank twist drills (jobber), Ø 3.0 mm to Ø 13.0 mm in steps of 1.0 mm. Maximum of two drill bits of each diameter may be used |
5.1.2 |
|
2 |
Set of core drills: HSS, HS/CO, carbide (masonry or metal cutting), Ø 50 mm max |
5.1.3 |
|
1 |
Electric sabre saw: nominal 1100 W ± 10 % |
5.2 |
|
5 |
Saw blades: Bimetal |
5.2.1 |
|
1 |
Electric jigsaw: nominal 650 W ± 10 % |
5.3 |
|
5 |
Saw blades: Bi-metal |
5.3.1 |
|
1 |
Angle grinder: nominal 1100 W ± 10 % |
5.4 |
|
3 |
Discs: nominal Ø 125 mm, thickness 2.5 mm (for steel or stone excluding diamond) |
5.4.1 |
Window System
Section Examples
Swing Door and Curtain Wall System
Section Examples
Sliding Door System
Section Examples
