KFORTS Burglar-Resistant Systems RC4, P6B
Higher level in accordance with EN1627-1630 and EN356.
According to EN1627, the practiced burglar uses in addition, a heavy hammer, an axe, chisels and a portable battery-powered drill. The heavy hammer, axe and drill give the burglar an increased number of attack methods. The burglar anticipates a reasonable reward and is likely to be resolute in his efforts to gain entry. He is also less concerned with the level of noise he produces and is prepared to take a greater risk.
Therefore, RC4 systems will resist this kind of burglar to protect people and essential assets.
Specifications
Specifications
| Burglar resistance class |
RC4, P6B |
| Glass thickness |
31mm-69mm |
| Profile thickness |
5mm |
| Fixed panel |
|
| Profile width | 75mm-90mm |
| Window | |
| Profile width | 78mm-84mm |
| Door | |
| Profile width | 121mm-126mm |

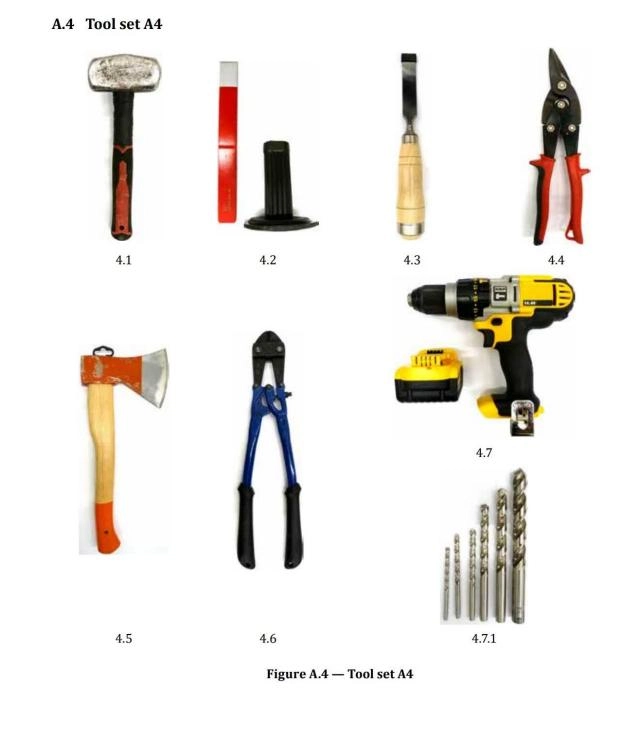

Table 5-Tool set A4 Quantity
|
Quantity |
Tool set A3 plus the following |
Tool No. |
|
1 |
Club hammer: length (300 ± 25) mm, head weight (1.25 ± 0.1) kg | 4.1 |
|
1 |
Cold chisel: length (250 ± 25) mm, blade width (30 ± 5) mm |
4.2 |
|
1 |
Wood chisel: length (350 ± 25) mm, blade width (30 ± 5) mm |
4.3 |
|
2 |
Plate shears: left cutting and right cutting, length (260+ 25) mm |
4.4 |
|
1 |
Axe: length (350 ± 25) mm, head weight (800 ± 30) g |
4.5 |
|
1 |
Bolt-cutter: length (460±50) mm |
4.6 |
|
1 |
Cordless drilling machine: Without percussion action, with two nominal 14.4 drilling machine V battery packs (up to 3.2 Ah each) |
4.7 |
|
1 |
Set of drill bits: or HS/CO parallel shank twist drills (jobber), from 1.0 mm to 13.0 mm in steps of 0.5 mm. Only one drill bit of each diameter may be used |
4.71 |
Window System
Section Examples
Swing Door and Curtain Wall System
Section Examples
Sliding Door System
Section Examples
More of Our High Quality Burglar Resistance Systems
KFORTS provides glass door and window security systems and protection against burglar, violent intrusion, bullets, explosions, and fire.
Contact Us for Your Custom Burglarproof & Forced Entry Solution
Trust KFORTS to provide you with the highest level of protection.
Contact us today to discuss your specific security needs and how our burglarproof and forced entry-resistant windows and doors can help safeguard your property.
Rest assured that your privacy is important to us, and all information provided will be handled with the utmost confidentiality.
